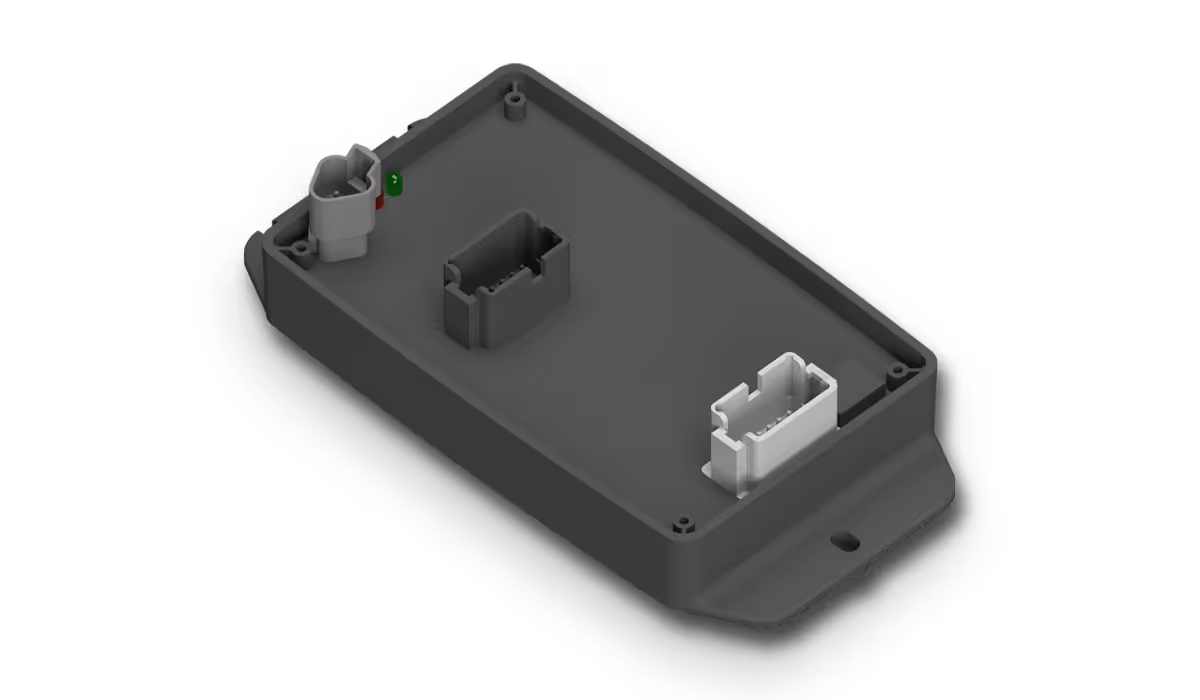

ioBLOC Output 100A
A 10 channel high current PWM module designed for extreme heavy duty applications
Summary
The ioBLOC 100A Output Module is a 10 channel PWM output module designed to be a cost effective solution for extreme heavy duty applications. Each PWM output has independent control of frequency and duty cycle, making it versatile to match a wide range of applications. 8 outputs are rated to 25.5A*, 2 outputs are rated to 10.0A, for a total device current rating of 100A.
Specifications
Key Benefits
- Reverse battery protection
- Voltage transient protection
- Short circuit and overload protection
- Sealed Deutsch connectors
Communication
- SAE J1939 communication protocol
Connections
- 3 Pin Deutsch (SAE J1939)
- 12 Pin Deutsch (Outputs 1-6)
- 12 Pin Deutsch (Outputs 7-10)
- 1 Pin Deutsch (Power)
Power
- Operating voltage range of 8–32 VDC
- Up to 25.5A* per output
- Up to 100A per module
- Output current feedback
- Adjustable output current limiting
- Independent frequency and duty cycle
Design
- Simple 3-point mounting
- IP67 Rated (with properly mated connectors)
- Customizable
