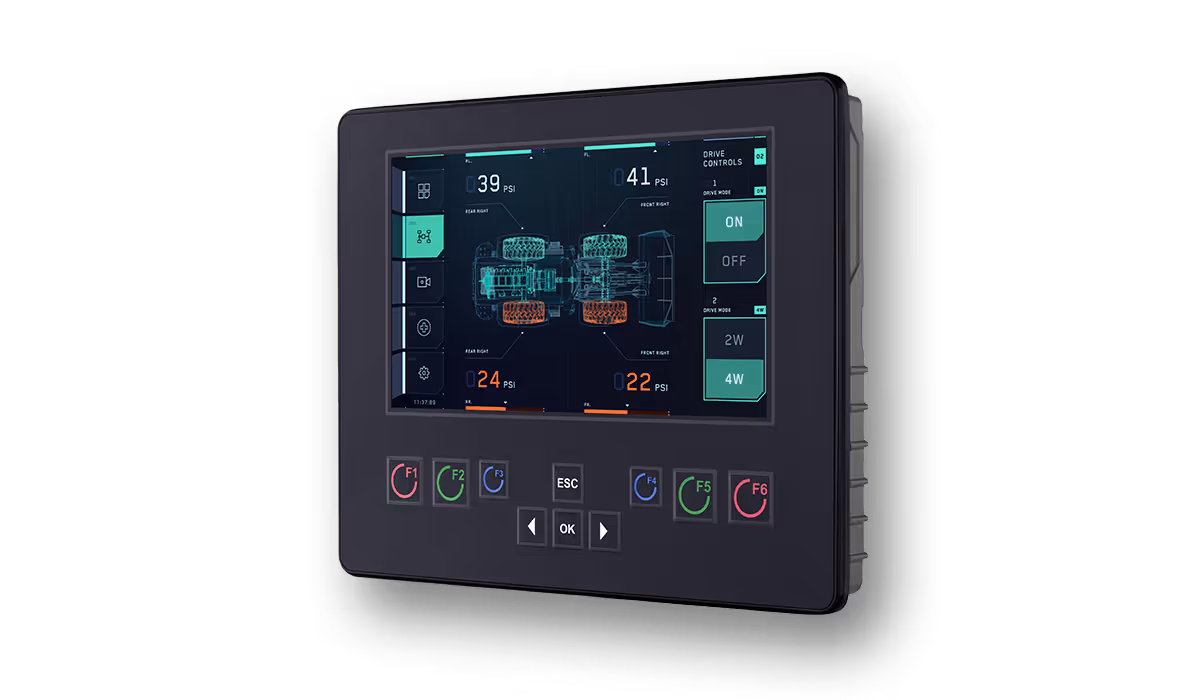

inSIGHT S7
7 Inch Mobile Machine Display
Summary
An incredibly versatile and compact display for any type of mobile machine
Specifications
Key Features
- Specially developed for use in mobile machines
- Robust yet lightweight aluminum die-cast housing for outdoor use
- Installation via clamping bracket or assembly with a standard ball holder
- Super wide viewing angle - read from virtually any direction
- Short stroke keys with tactile feedback
- Key illumination in RGB
- Freely programmable
Display
- Size: 7 inch (154.2 x 85.9 mm)
- Resolution: 1024 x 600 pixel
- Brightness: 1000 nits
- Contrast ratio: 800:1
- Viewing angle: 170°
- Type: Color TFT
User Interface
- Touchscreen display
- 10 RGB illuminated keys (individually controllable and dimmable)
Mounting
- Landscape or portrait
- Standalone or in-dash
- Standalone mounting with RAM®-Mount Panel mounting with clamping bracket
Interface Options
- CANbus ISO 11898
- Ethernet 10/100 Mbps Base T
- 1 USB
- Video and digital output
Communication Protocols
- SAE J1939
- CANopen
