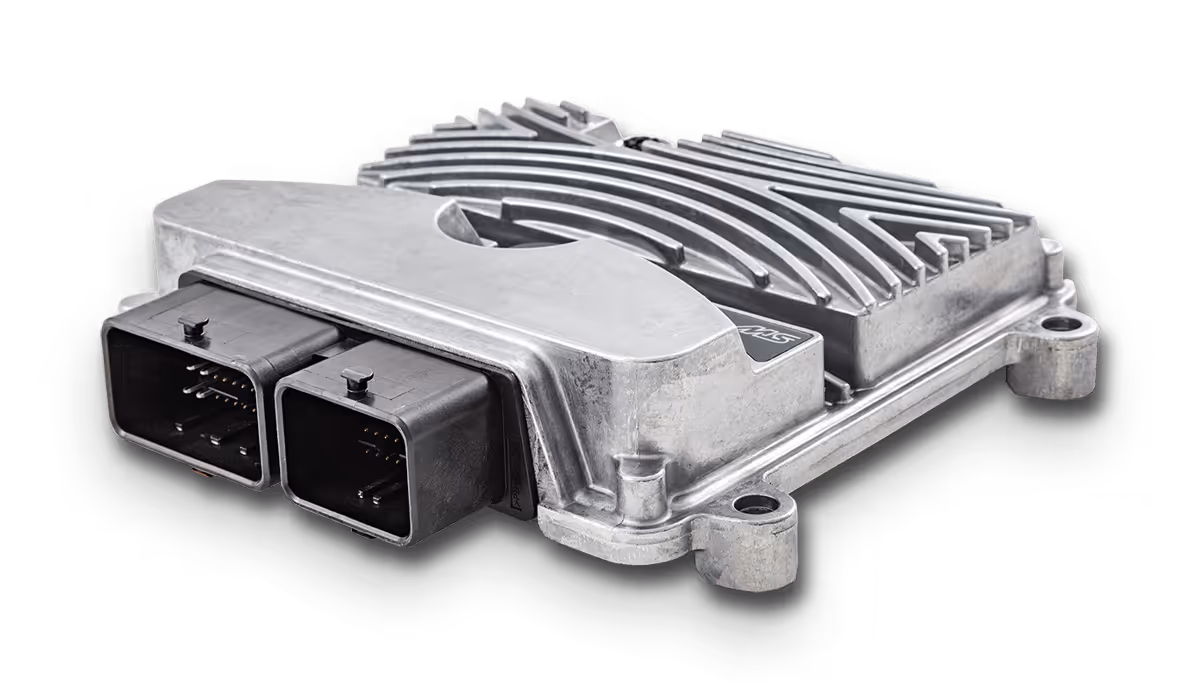

ESX.4cs-gw
Summary
The ESX.4cs-gw is a compact, modern-designed fourth generation control unit from STW. As a freely programmable communications gateway, it not only offers controller capabilities, but can also operate as a communications hub for the entire onboard vehicle network. With multiple ethernet switch options available, it is ready for the latest in high-speed machine peripherals.
Specifications
Programming
The ESX.4cs-gw controller supports programming in C language and IEC61131-3 languages. Application development is done using openSYDE paired with logi.CAD. Learn more about application development for 4 Series Controllers here.
Connections
- CAN interfaces: 6
- RS232 interface: 1
- Ethernet interfaces: Up to 5
- 1 Gbit
- BroadR-Reach
- 100 Mb (for diagnostics monitoring)
- LIN x 1
- I/O interfaces
- Inputs
- Analog Inputs x 4
- Multi Inputs x 8
- Outputs
- Digital/PWM Outputs x 4
- Inputs
Processing
- Processor: 32 bit Aurix TC299 Multi-core (up to 300MHz)
- RAM: 2 MB Internal
- Flash: 8 MB Internal
- Data Flash: 16 MB Internal
- EEPROM: 32 kB
Design
- Manufactured in Germany using the latest in advanced electronics for mobile machines and off-highway vehicles
- Compact - small footprint without sacrificing computing power
- Freely programmable - SIL2 rated for mobile off-highway industry safety standards
- Cast aluminum housing - high resistance to shock, vibration, EMI/EMC, and drastic changes in temperature
- Mean Time Between Failure (MTBF) of up to 50 years
