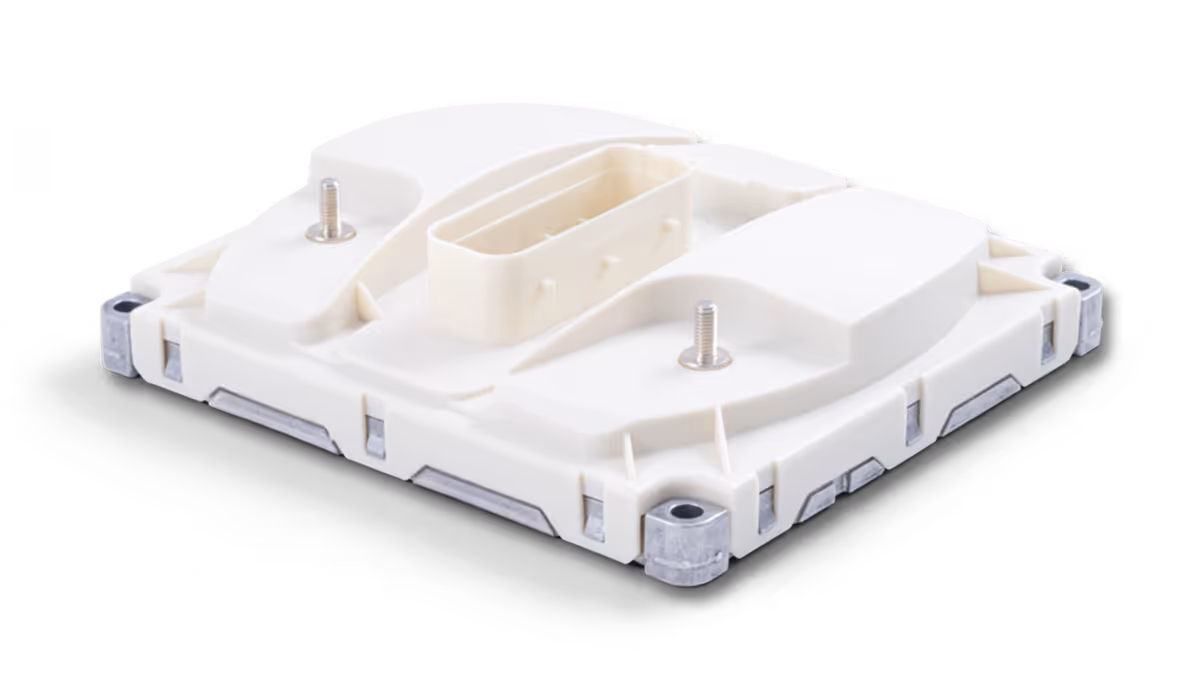

BCX.4cs-ag
Summary
The BCX.4cs-ag is a central on-board power distribution and control unit designed for agricultural implements. It is certified to be compliant with the ISO 11783 standard, commonly known as ISOBUS, per the Agricultural Industry Electronics Foundation (AEF).
Specifications
Programming
The unit supports flexible programming via C or IEC61131-3 (logi.CAD), and is fully compatible with openSYDE for diagnostics, configuration, and lifecycle management. Learn more about application development for 4 Series Controllers here.
Power Distribution
The BCX-4cs-ag combines the functionality of a central electrical system and an electronic control unit in one compact, rugged housing optimized for harsh environments. It enables efficient switching, diagnostics, protection, and distribution of electrical power.
Connections
- ISOBUS compliant (ISO 11783)
- CAN interfaces: 1
- Inputs/Outputs
- Inputs: 12
- Outputs: 20
- 10A H-Bridge Outputs: 8
- 15A Outputs: 4
- High Side Outputs: 8
- 10A H-Bridge Outputs: 8
- Inputs: 12
Processing
- Processor: Aurix TC367 (300MHz)
- Flash: 4 MB
- SRAM: 576 kB
Design
- Compatible with 8–32 VDC input range, up to 50 A total load
- Sealed to IP69K for maximum protection in harsh conditions
- Operating temp: -40°C to +85°C
