ESX.3cs

Name: ESX.3cs
Brand: STW Technic

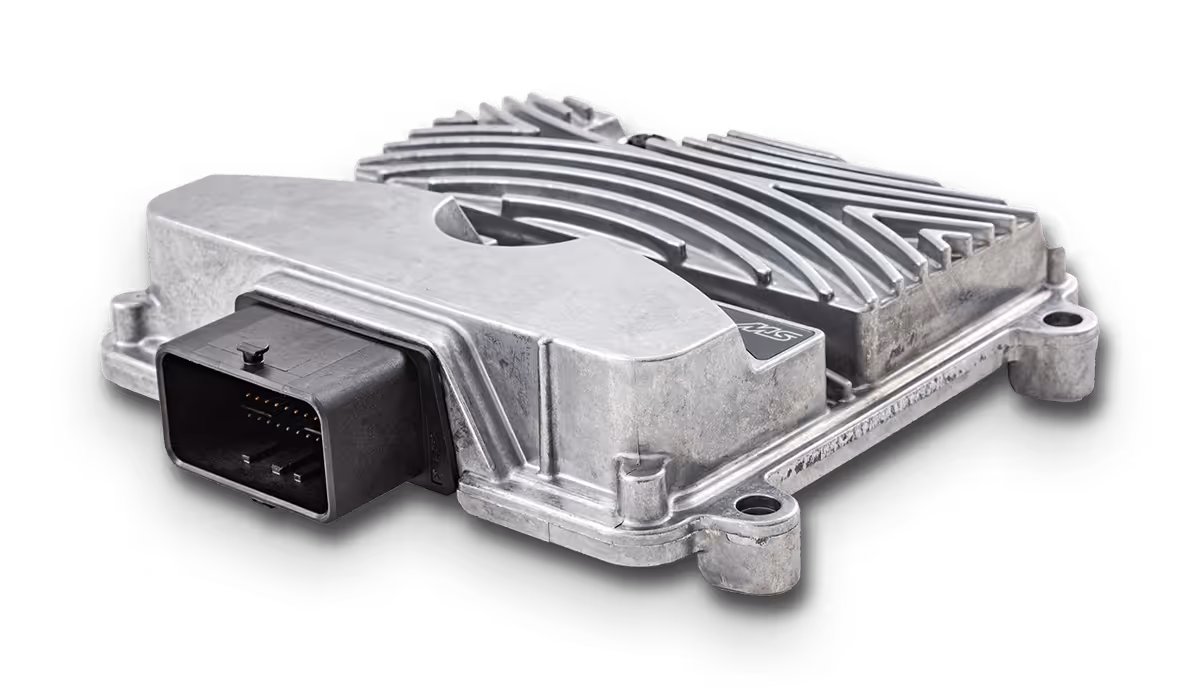

ESX.3cs Compact Controller Module

Summary

The ESX.3cs is a compact, modern-designed control unit from STW. It offers a high range of input/output options, and also supports a multitude of programming environments such as C, logi.CAD, CODESYS, and MATLAB. It is designed specifically for operation in hard mobile machines environments with scalability in mind.

Get a quote

Specifications

Communication

For communication purposes, the ESX.3cs offers two CAN connections, an optional Ethernet, an RS232 port, and a LIN interface.

‍

Connections

CAN x 2
I/O
- 16 Inputs (SENT support)
- 14 Outputs
On-board Ethernet (optional)

‍

Processing

32 bit TriCore @ 300 MHz
Flash - 4 MB Internal

‍

Programming

The application software for the ESX.3cs can be created highly efficiently either in “C”, CODESYS V3.5 IEC 61131 or logi.CAD. In the programming interface, numerous convenient functions such as current controllers and ramp functions for outputs or frequency averaging for inputs are integrated.

‍

Design

Manufactured in Germany using the latest in advanced electronics for mobile machines and off-highway vehicles
Compact - small footprint without sacrificing computing power
Freely programmable - SIL2 rated for mobile off-highway industry safety standards
Cast aluminum housing - high resistance to shock, vibration, EMI/EMC, and drastic changes in temperature
Mean Time Between Failure (MTBF) of up to 50 years
